EAGLE Assignment Help Service

A Brief Discussion on EAGLE

For PCB designed the most common and useful CAD software is EAGLE. EAGLE is the abbreviation for Easily Applicable Graphical Layout Editor. CADsoft Computer developed this software; however, in the year 2016, EAGLE was taken by Autodesk. EAGLE has a very easy, simple, and effective interface and also a library that comprises a huge number of electronic and electric components. If you are searching for EAGLE assignment help, then BookMyEssay is the right answer. It is hugely popular software for PCB designing among the educationist, professionals, and hobbyists. EAGLE is installed on the Linux, Windows, and MAC platform and the free version of this software is there on the AUTODESK website. Our highly experienced academic writers at BookMyEssay are fully conversant with this software so that they offer the highest quality EAGLE case study help. They strictly follow the university guidelines and all assignments written by them contain zero plagiarism.

EAGLE – An Overview

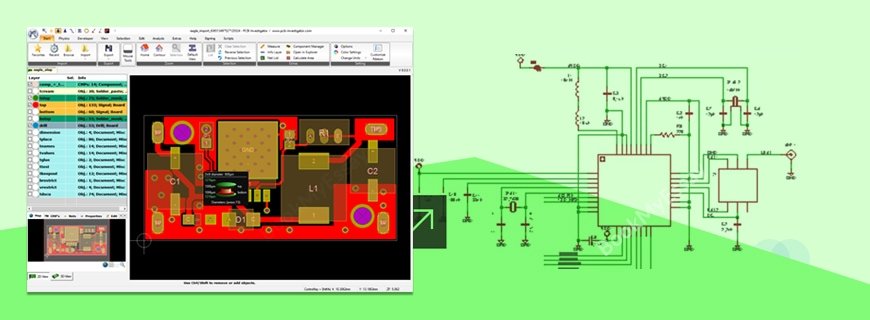

EAGLE has got two editors; PCB layout editor and Schematic editor. The schematic editor is used for adding all the components and also connecting them as per the requirement of the circuit. This file has some of the unique features such as multi-sheet schematic, modular design block, real-time design, and electronic rule checking. Thereafter, the schematic is converted directly to the PCB layout editor where you can set the components with very less complexity. This layout editor has good features such as the alignment tools, routing engine, and obstacle avoidance. The features are available in the free version.

For the use of the professionals, EAGLE offers the paid version. In the paid version, AUTODESK offers technical support including mail, call, and online chat support and also offers access to the newest software release. However, for the self-use and educational the free version of the software has many features.

EAGLE is available as the yearly or multi-yearly subscription in the two versions such as the standard and the premium

The advantages of the subscription include the following:

  • Regular updates with bug fixing and new features
  • Dedicated support via Autodesk
  • It is budget-friendly. No huge capital cost and there are no separate maintenance and support contracts.

Whether you have only one member in your team or your engineering department has many members, EAGLE offers quality design software of OCB together with the features that can get the work done easily. For more than 20 years, this software has satisfied the design engineers all over the world by providing core functionality like the expensive commercial software but at a fraction of a cost.

Easy to Learn

  • Layout editor, Schematic editor, and library editor modules with the same user interfaces.
  • Free service support via the dedicated experts
  • Compatible with the Linux, Mac, and Windows

Easy to Use

  • The flexible user language programs or the ULPs enable the custom features like simulation, individual instruction sequences, data import and export

The Export Gerber files can be used:

  • SM 3000 and SM 1000
  • Gerber 274D and 274X
  • Online product import and information of pricing through DesignLink
  • Active customer forums for sharing the files, ULPs, libraries, design tips, and many more
  • Paste the data outside of the EAGLE

Its features that are explained by our EAGLE homework and assignment writers include the following:

Schematic Editor

  • Permits 999 sheets for supporting the complex designs
  • It enables individualisation of the sheets and the schematics with descriptions
  • Creates boards just with a single click of a mouse

Layout Editor

  • It enables the professional PCB design
  • Supports the differential routing of the pair and meanders
  • Manages the various assembly variants
  • Offers easy use of the dimensioning tool

Auto Router

  • It automatically routes the single connections
  • It saves the time when we do the manual routing with the interactive follow me the router
  • Allows the users for specifying the custom routing features that include layer preference, clearance values, routing grid, and cost factors.

The Best Features of BookMyEssay

Students approach us regularly for the academic writing services because our online writers always provide high-quality content. Some of the excellent features that help us in offering the best EAGLE essay assignment writing help include the following:

  • Our online writers are available round-the-clock to offer the necessary guidance whenever the students need them. You can contact via chats, emails, or phone calls.
  • We provide a unique, original, and plagiarism free content.
  • We always meet the deadline.
  • In case of short deadline maybe a few hours or a day, we offer assignment help as well as EAGLE dissertation thesis writing assistance.
  • We have kept our pricing very reasonable and affordable.
  • We offer unlimited and free revisions on every assignment.
  • We have multiple payment methods and the payments methods are completely safe and secure.
  • Our writer proofread every writing before final submission so the chances of any error are not there.

So, for availing a top-notch EAGLE assignment help, contact BookMyEssay.
